Drain/Floor Drain
One-piece three-way ball valve
Municipal tap water (inlet)
Waste water
outlet
Faucet
Water
inlet
RO water
Filtered
water
-8-
Installation and Maintenance
6. Install the faucet
According to the installation position of the faucet, make a groove in the stainless
with an electric drill, and then fix the faucet.
7. PE water pipe connection
This machine adopts quick coupling, just insert the water pipe into the corre-
sponding coupling.
Before connecting water pipes, cut off a PE pipe of appropriate length and ensure
that the cut surface of the PE pipe is smooth and neat to prevent water leakage.
① RO water connection: Connect the 1/4 inch sraight joint through to the bottom
of the faucet connecting rod, connect one end of the 1/4 inch PE pipe to the quick
coupling end, and connect the other end to the connection port engraved with the
"RO water" logo at the rear of the fuselage.
② Input water connection: Connect one end of the 3/8 inch PE pipe to the tap
water inlet ball valve, and connect the other end to the connection port marked
"Input water" at the rear of the fuselage.
③ Waste water connection: Insert one end of the 1/4 inch PE pipe and fix it on the
drain pipe, and connect the other end to the connection port engraved with "Waste
water" at the rear of the fuselage (Note: The drain pipe cannot be placed in the
container without full water protection measures to prevent the floor from soaking
due to full water in the container).
④ Filtered water connection: connect the 1/4 inch sraight joint through to the
bottom of the faucet rod, connect one end of the 1/4 inch PE pipe to the end of the
quick connection, the other end is connected to the rear of the fuselage engraved
with the "Filtered water" mark connection port.
Note: The PE pipe of faucet RO water outlet and Filtered water outlet shall
be subject to the label.
Note the following when connecting and installing PE pipes:
◎The water pipe should be installed along the edge of the kitchen cabinet.
◎Use the appropriate tool to cut the pipe vertically to the required length.
◎Do not bend the pipe when installing it to avoid squeezing it.
◎In order to make the water flow smoothly and quickly, the shorter the water
pipe connecting the main unit to the faucet, the better.

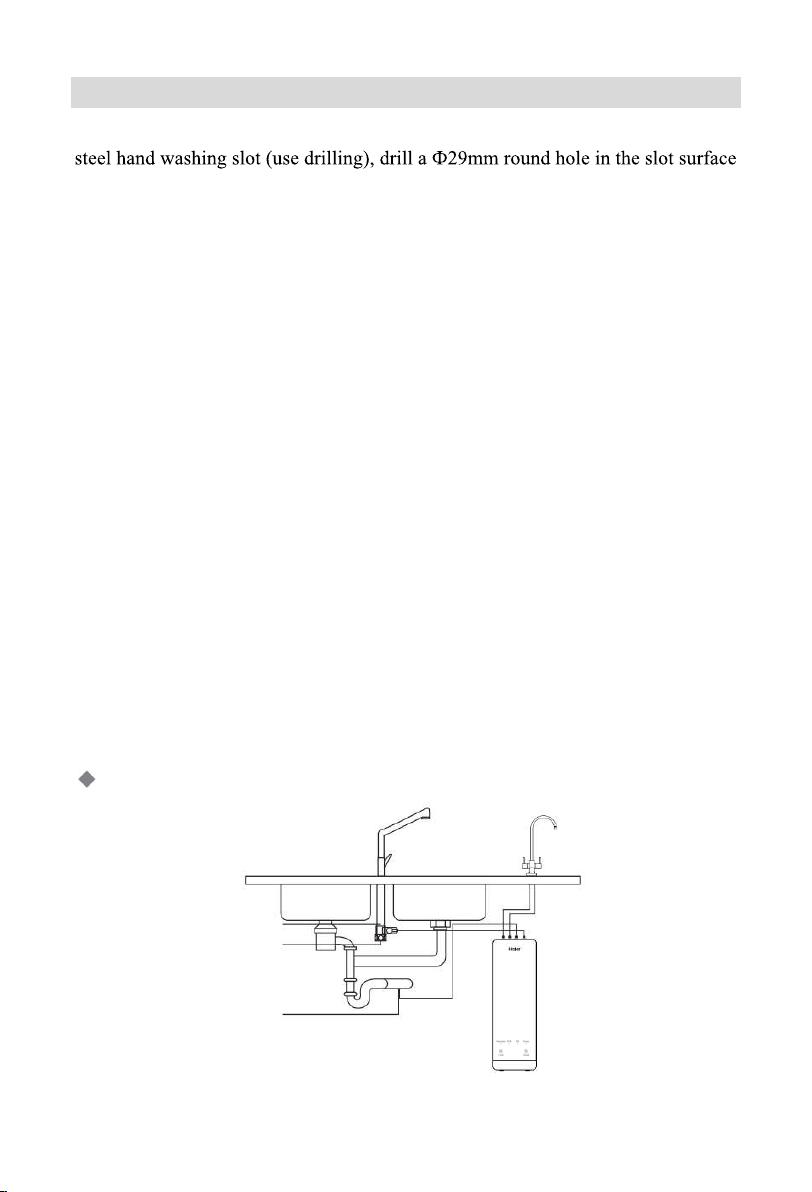

Kitchen Installation Diagram
