Centek CT-1730
Данная инструкция на русском языке предназначена для холодильника Centek CT-1730, описывает принцип работы и основные моменты эксплуатации устройства. Перед первым включением рекомендуется внимательно изучить данное руководство.
Инструкция для холодильника представлена в формате PDF, который поддерживается на всех современных устройствах, так что сложностей с открытием файла возникнуть не должно. Но если открыть документ не получается, установите любую программу для чтения PDF файлов, например Acrobat Reader.
Чтобы распечатать инструкцию, нужно ее сначала скачать, для этого кликните по кнопке «Скачать инструкцию», файл откроется в новой вкладке, затем нажмите комбинацию клавиш Сtrl + P и из открывшегося диалогового окна, отправьте документ на печать.
26
OVERHANGING DOORS
ATTENTION!
For rearranging the door, it is recommended to contact a qualified
specialist. If you decide to reinstall the refrigerator door yourself,
use the recommendations listed below in this manual.
Tools required: Philips screwdriver, flat screwdriver, Allen key.
–Disconnect the refrigerator from power supply.
–Remove all food from the refrigeration chamber.
–Tilt the refrigerator.
–Remove the refrigerator’s feet.
–Unscrew the bolts fastening the lower hinges (Fig. 1).
–Remove the door from the refrigerator.
–Unscrew the bolts and remove the middle hinges and the
freezer chamber door.
–Remove the upper hinge support.
–Reinstall the supports to the opposite side.
–Reinstall the hinge supports to the other side (Fig. 2).
–Reinstall the freezer chamber door.
–Install the middle hinge.
–Reinstall the refrigerator door.
–Install the lower hinge.
–Reinstall the bottom feet.

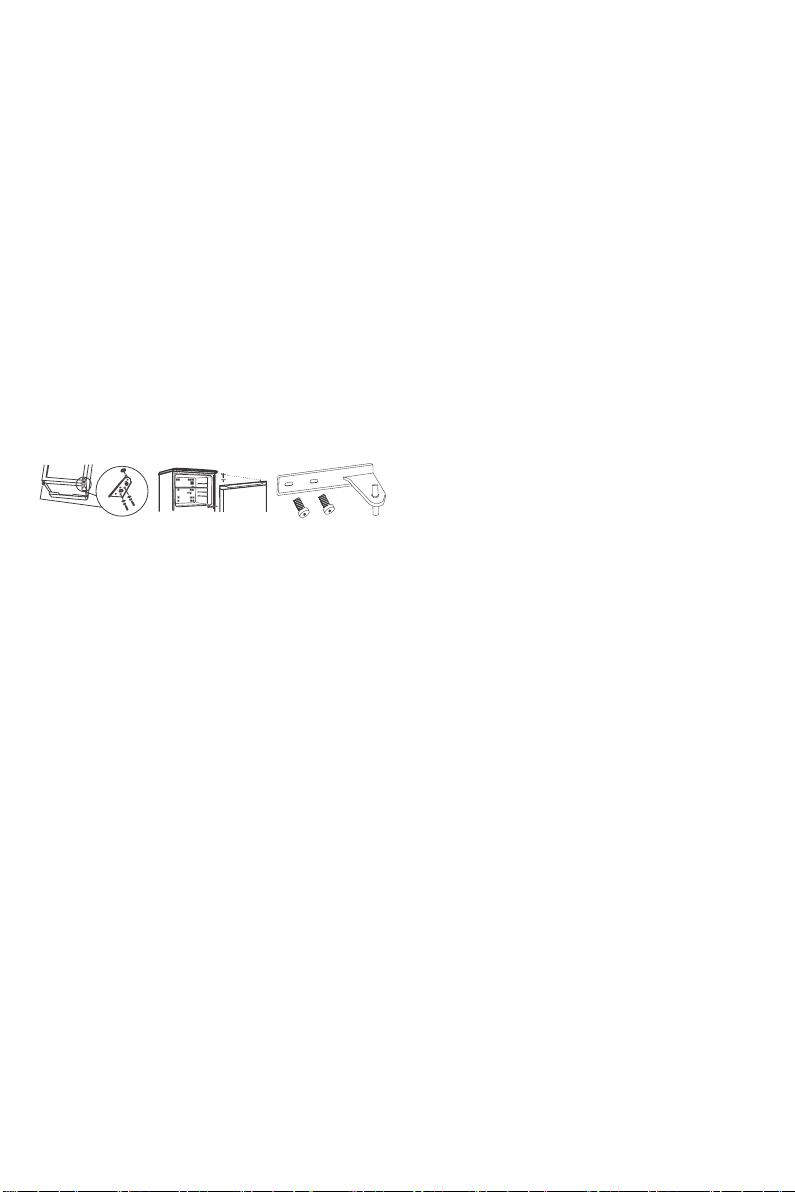

Figure 1 Figure 2 Figure 3
Middle loop
VENTILATION
The compressor and condenser of the refrigerator heat up during
operation, so it is necessary to provide sufficient ventilation to
the device.
–The refrigerator should be installed in a well-ventilated room
with normal humidity. It is forbidden to install a refrigerator
in rooms with high humidity, for example, in bathrooms,
basements.
–When installing, ensure minimum gaps (3-5 cm) on the sides of
the device and 10 cm on top for free air circulation. Do not block
the air movement at the back of the appliance.
–Do not place near heat sources.
–Do not place the refrigerator in direct sunlight or near heat
sources (kitchen stoves, ovens, fireplaces).
ALIGNMENT
For the efficient operation of the refrigerator, it is important that
it is on a flat surface. After installing the refrigerator in place,
adjust its position by rotating the adjustment supports in its front
part. The tilt of the refrigerator back should not exceed 5°.
CONNECTION TO THE POWER SUPPLY
The refrigerator corresponds to the 1st class of protection against
electric shock and is connected to the electrical supply using a
two-pole outlet with a grounding contact.
–Before connecting to the mains, make sure that:
–The mains voltage corresponds to the data indicated on the
special plate on the back of the refrigerator;
–The grounding contact of the electrical outlet is connected to
the grounding wire of the power supply cable of the electrical
network (the connecting wire must be designed for a current
of at least 10 A);
–The socket and plug are of the same type; if the plug does
not fit into the outlet, the outlet should be replaced with the
corresponding plug of the power cord (the work must be
performed by a qualified electrician).
The refrigerator must be installed in such a way that you always
have access to an outlet. A refrigerator connected in violation
of the safety requirements of high-power household appliances
described in this manual is potentially dangerous.
The manufacturer is not responsible for damage to health and
property if it is caused by non-compliance with the specified
installation standards.
5. REFRIGERATOR OPERATION
BEFORE SWITCHING ON
It is necessary to connect the refrigerator to the mains three
hours after its installation. Thus, the refrigerant will be
distributed properly after transportation – this is necessary for
the proper operation of the refrigerator.
A few hours after connecting the refrigerator to the mains, You
can put products in it.
Remove the transport spacers between the compressor and the
back wall of the niche, as well as other spacers and adhesive
tapes that keep the moving parts of the device from shifting.
If the device has a protective coating of polymer film, carefully
remove it, taking precautions not to damage the paint or polymer
coating of the parts.
SETTING COOLING MODES IN THE REFRIGERATOR COMPARTMENT
(FIG. 2)
When you turn on the appliance for the first time, the indicators
on the refrigerator compartment display light up simultaneously
for 3 seconds. After that, the device goes into normal mode, the
C indicator lights up.
In order to select the required temperature mode, press the
setting button (11) several times, the corresponding indicator will
light up:
A - temperature regime 6-10 ⁰С;
B - temperature regime 4-8 ⁰С;
C - temperature regime 1-7 ⁰С;
D - temperature regime 0-4 ⁰С.
NOTE: the recommended temperature for constant operation of
the refrigerator compartment is C (1-7 ⁰C).
USING THE FREEZER
In order to ensure the best storage conditions for products, follow
the recommendations below. Products intended for freezing and
storage in the freezer should be carefully packed to avoid the
formation of excessive frost.
–Preferably, the products placed inside the freezer should not
come into contact with the back and side walls.
–For proper storage and ease of subsequent defrosting, place the
products in small portions.
–Do not place full glass containers with freezing liquids in the
freezer for a long time, especially if
–They contain tightly sealed effervescent or carbonated drinks.
The liquid, crystallizing, can destroy the container.
–Do not put liquids in containers without a lid in the freezer, in
order to avoid an increase in humidity, because this leads to an
increase in temperature.
